Bailey Bridge Bearings and Baseplates

Product introduction

The bridge bearings and baseplate are the basic parts and important components of the Bailey steel bridge. Because Bailey Bridge is divided into 321 steel bridge and HD200 steel bridge, the bridge bearings and baseplate can also be divided into 321 type and 200 type.

Product composition

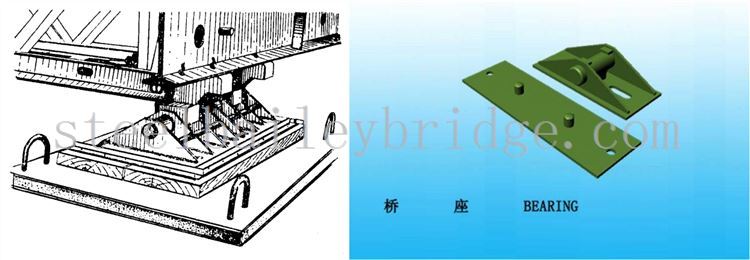

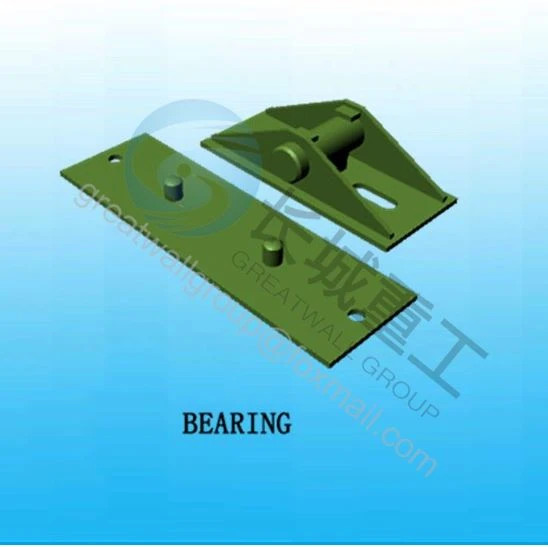

Type 321 abutment: The end column of the bridge is supported on the axle beam of the abutment. The axle beam is divided into three sections. When a single-row bridge is erected, the truss end column is supported on the middle section of the axle beam; when a double-row bridge is erected, two bridges are used The seat and end columns are respectively supported on the middle section of the two axle beams of the abutment. When three rows of bridges are erected, two abutments are still used. Supported on the two side sections of the axle beam of the other bridge bearing.

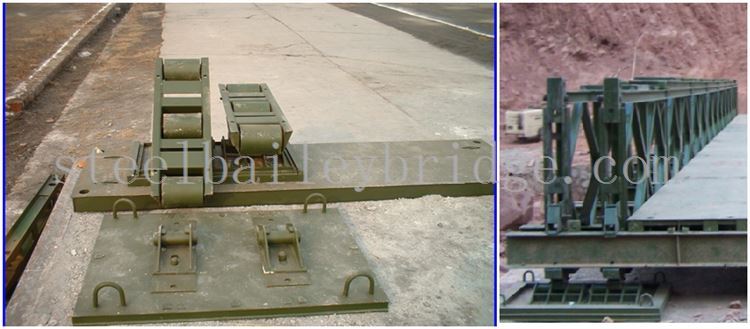

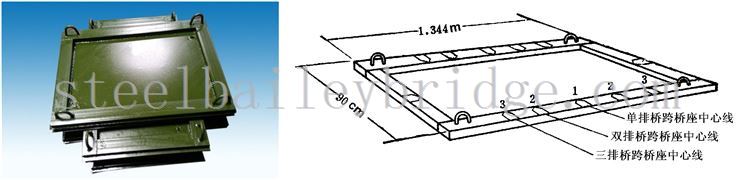

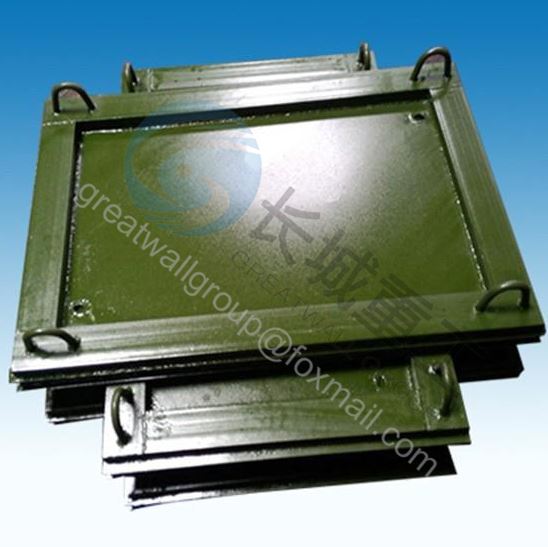

Type 321 baseplate: The baseplate is used to place the bridge abutment and evenly distribute the load from the bridge abutment on the foundation. Numbers 1, 2, and 3 are engraved on the edge of the baseplate, which respectively indicate the position of the centerline of the bridge abutment for single-row, double-row, and three-row bridges. On the other side of the seat plate is engraved the position of the centerline in the direction of the bridge.

200 type bridge bearing, the baseplate is the same as 321 type, but the structure is a single body, and each bridge bearing corresponds to a baseplate.

Our service

Pre-installed earlier than shipment：for you to ensure meeting accuracy and keep away from length mismatches on web site, Zhenjiang extremely good Wall Heavy Industries randomly selects the batch of products for size inspection earlier than cargo to make certain product high-quality.

Chargeable for set up and commissioning: For all bridges and system purchased from Zhenjiang Great Wall Heavy Industries, Great Wall Heavy Industries can ship a creation crew to the web site to be responsible for assembly and erection until the steel bridge is checked and normal to satisfy the owner's visitors desires.

Schooling and guidance: If the customer wishes, we are able to ship engineers to all elements of the sector for bridge erection coaching and comprehensive education on steel bridge related expertise to make sure that people can whole the installation independently.
